Day 205, Fixed windows trim frames, finishing AC cabinet, 12V outlets installation, several small things complete.

 Day 206, New Fixed windows trim installation.



Interior (small things)

Fixed windows

New trim around fixed windows made out of teak and installed. each trim piece made of 4 parts. all cut on my workshop CNC out of teak wood. Only thing left here - paint the gap between window and trim.



Other things done today

Made and  installed Door-cover under the AC inlet.

LPG sensor - alarm installed.

I installed the alarm ind found it is alarming all time. I am pretty sure I have no LPG on the board.  I bought the sensor several years ago, and it was on the boat all the time and likely was "poisoned" by paint thinners fumes. Ordering a replacement.

Other small things

Replaced engine overheat dumb lamp fixture (original had rubber disintegrated) .



In attempt to tight engine (ignition) switch  I broke it, by break line it was cracked for a while.  Good to get it broken at the dock ;-)



Connected compass light back, added connector for convenience.



Investigated steering cross member, confirmed there no life threatening cracks  on it.



Checked dorade box to estimate how to make wter separation wall there, found wasps nest ;-)



Replaced shore line GFCI breaker to 32A - 30mA version. Ip67 box cannot cose properly, need to find dipper box or make spacier.



Installed x3  12V outlets (mainly for 12v fans):

    starboard - in between galley and settee (+with USB charger),

    port - on the nav station from the side of shelves.

    Port - in the head.



Interior work officially "almost done". But some imperfection left for future.

Interior  imperfections listing

Some of them I will leave for future, some just leave as is.

Chain plates - headliner connection need trim plate

Starboard chainplate.

Port side chainplate

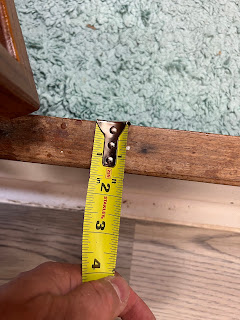

Portside open shelves headliner to back liner connection has gap about 1/2 inch. also stanchion mounting block is not covered or even pained. Headliner to nav station connection needs trim.

Portside shelves, stanchion block



Portside shelves, headliner





Other thing, gelcoat on the bottom shelf is damaged and stained.

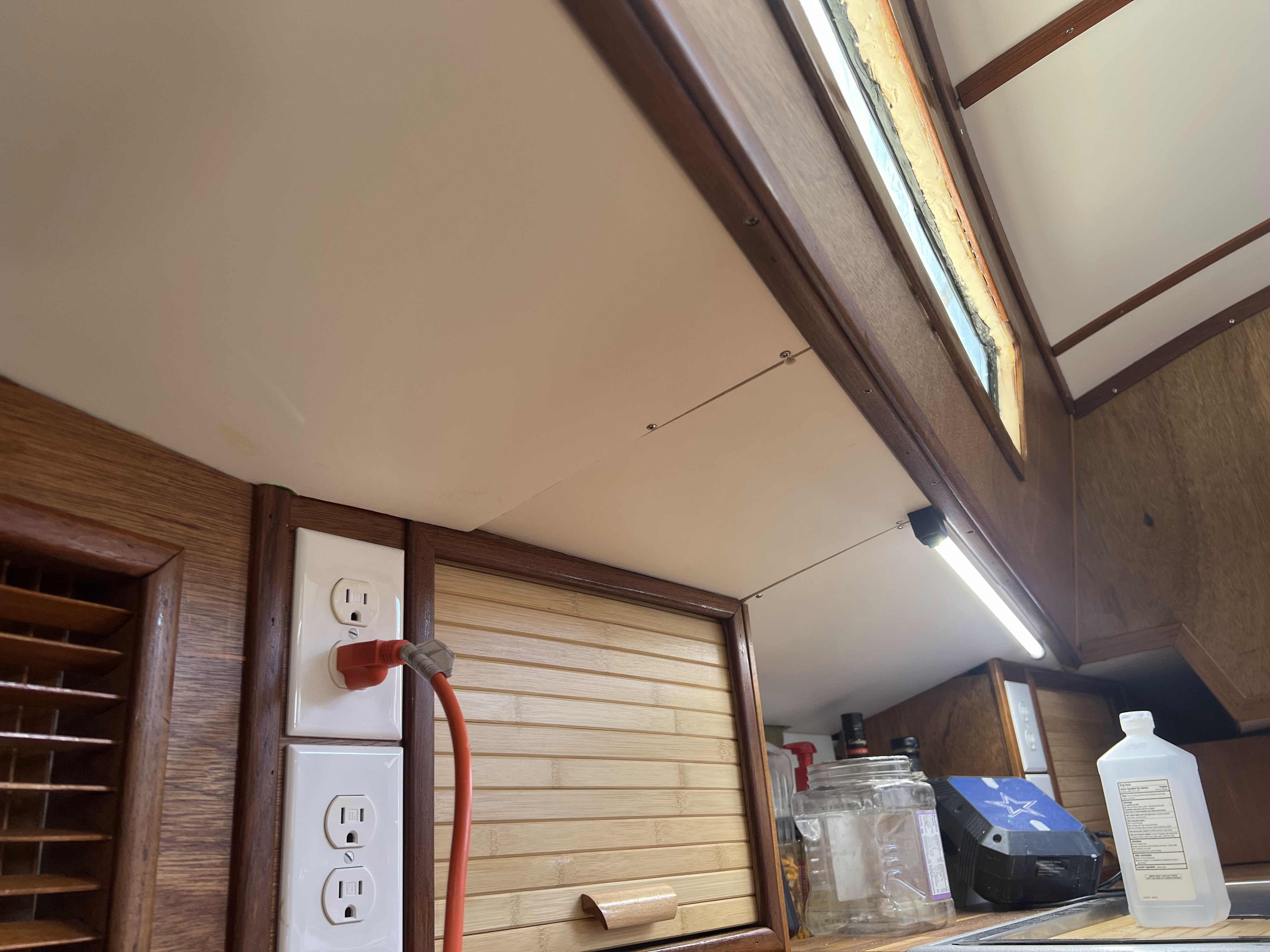

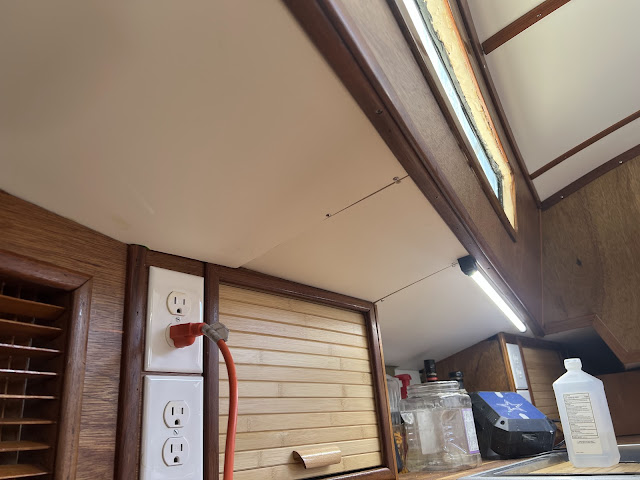

Galley - gap between back liner and cabinet wall.

Galley cabinets, minor paint damages.

 Nav station, gap between panels, need backer plate to hide shiny thermal insulation.

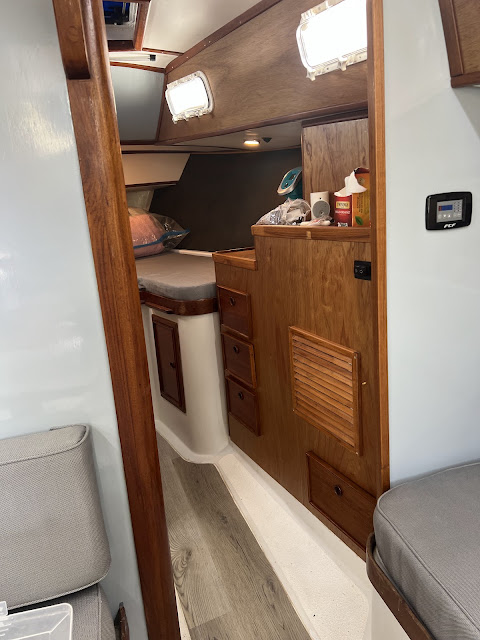

Front cabin, over v-berth, trim is not joined well. Likely it will stay this way forever.

Head, stanchion mount block not covered or painted.

Main cabin hatch, trim is broken, need to be rebuild and replace.

Wall next to compression post needs detail painting.

Little white touch-up needed here as well,

Headliner connections are  asking for trim

 Head door needs sloped plank to let water drip into the shower pan if some water will try to run out.
