Day 83, 4/1/23 Finished mounting "shelf" for refrigerator compressor, Head and main cabin rolette doord for shelves, AC pump move to galley cabinet, 11 hours.

-

 Interior

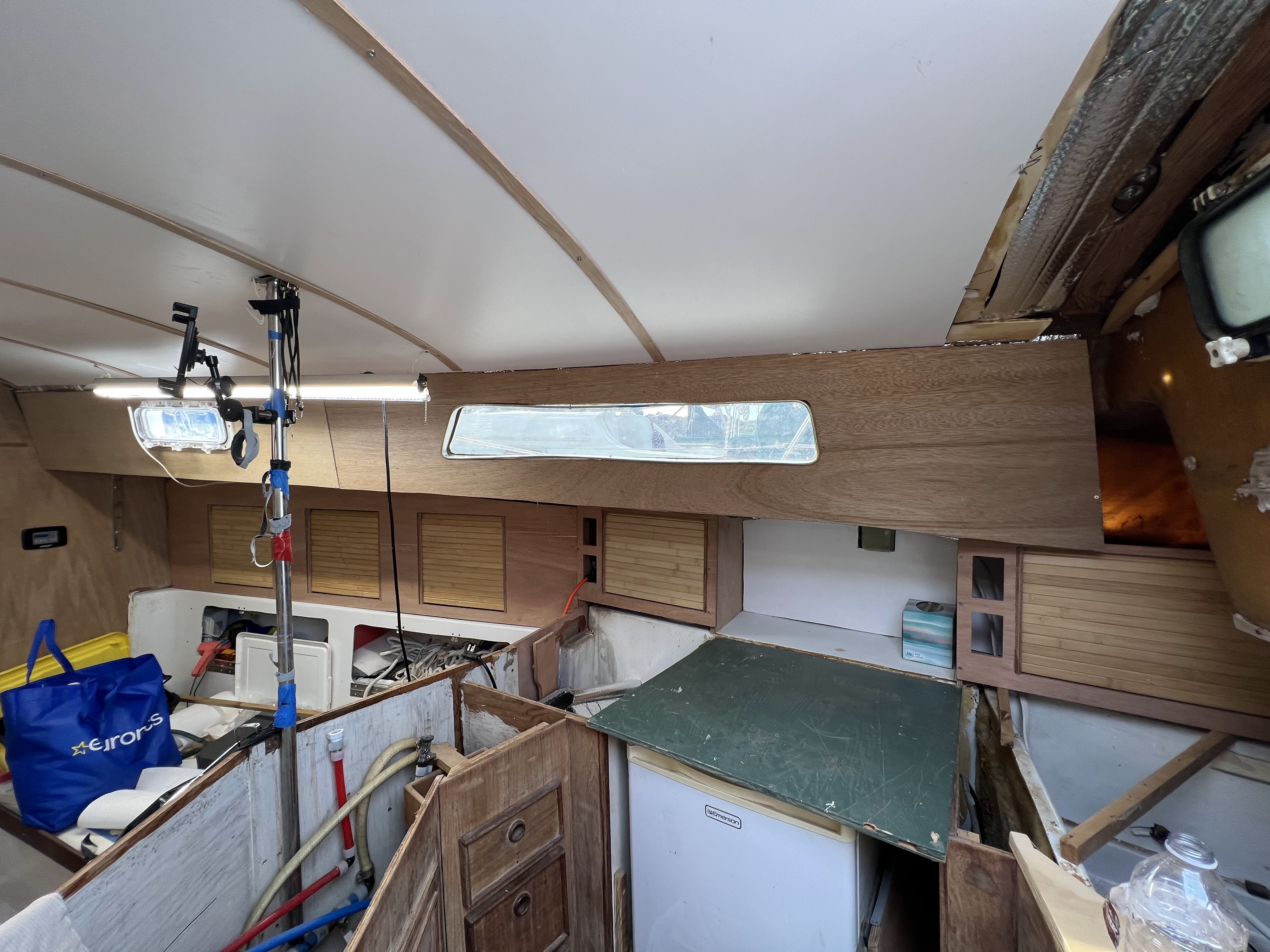

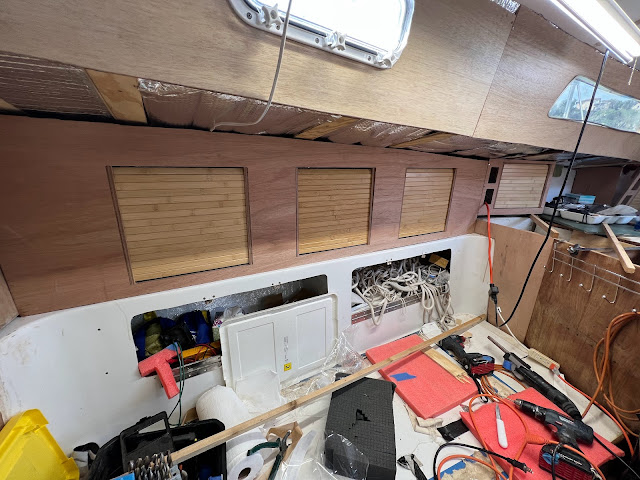

Head and main cabin starboard shelves faces ready to dry fit.

Head cabinet
Install cabinet door




Galley cabinets and starboard shelf front doors



 Air conditioner

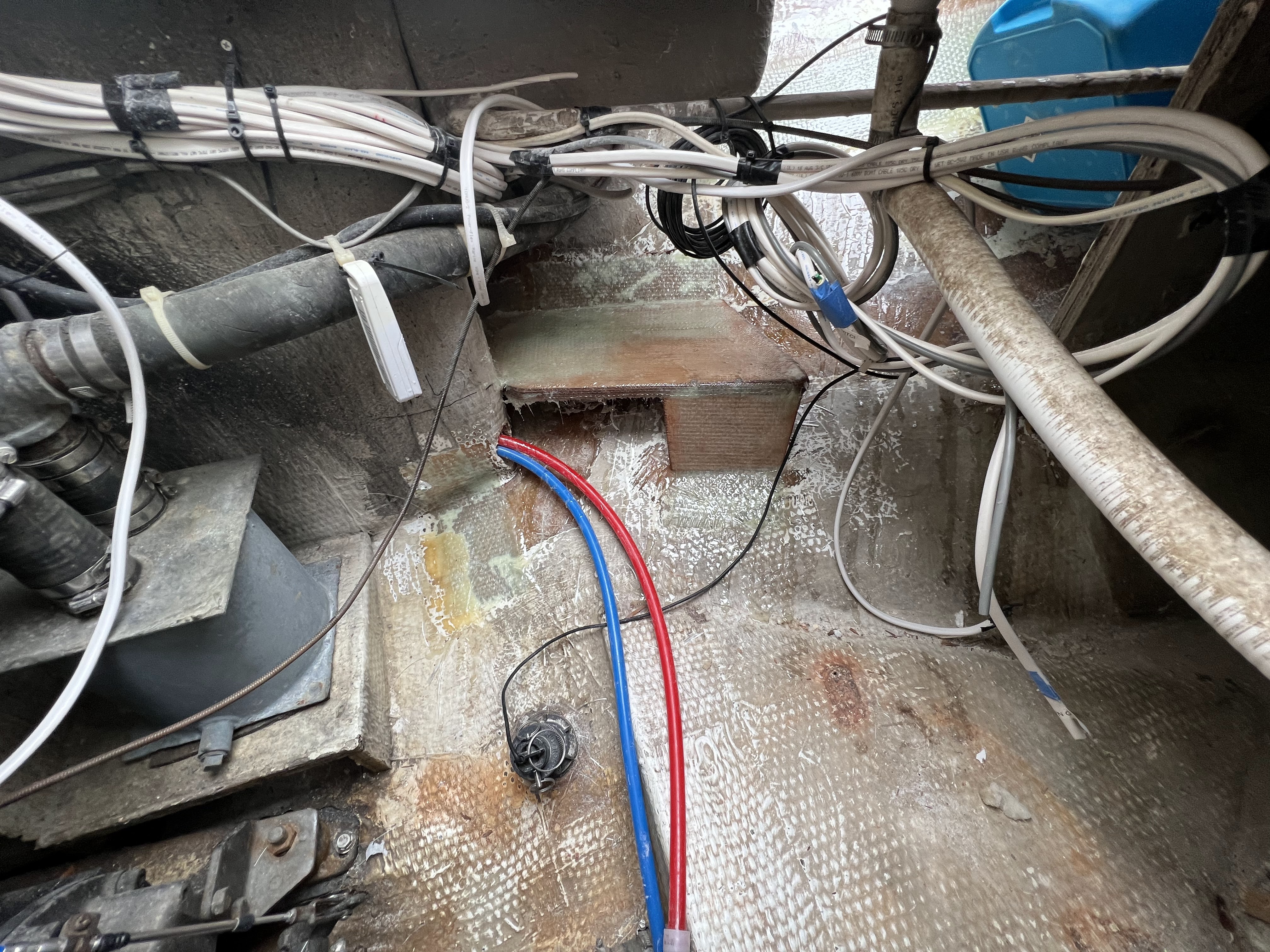

Air conditioner pump moved to galley cabinet bottom, next to fresh water pressure pump.


Pump is below waterline, but not good enough to be underway. need to install check valve  on the line

Refrigerator

Finished refrigerator compressor mounting "shelf". (final sanding required :-) ).


Glassed rails to mount refrigerator condenser coil (on the left). It is on the back side of LPG tank locker.


Interior

Epoxied plywood scrap part as "anchor" point fro bulkhead between main cabin and cockpit lockers.
