Day 81, 3/11 Galley and main cabin starboard cabinets walls making and glassing. Cockpit bulkheads tabbing, hull delamination fix.

-



 Interior

Set 5 minor walls for  galley cabinets and starboard storage over settee. made front panels.





To make tabbing in preside position i hot-glued wood blocks on bottom and top and then tabbed walls to the hull, inliner and deck.

Next step - cut openings for the cabinets doors

Structural.

 Starboard cockpit locker area repair. Re-glassing two walls and rebuild de-laminated area on the hull.



 Interior.

Found nice bamboo roulette door ;-) in ikea




Prototyping Roulette type doors for cabinets.

Door type#1 (for head  cabinet) there enough space to accommodate door horizontally.

Made model from old plywood left-overs, full scale model works well.



For other places need to hide door somewhere.

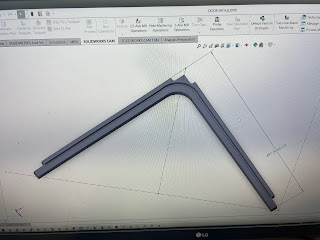

Rail for this case.
